Patient Warming Mattresses + Return Electrode

HotDog Patient Warming Mattresses + Return Electrode are an all-in-one solution for both patient warming and electrosurgery. The Mattresses are designed to provide safe warming under the patient (35-40°C settings) while also providing grounding. The fabric heater is layered over pressure-relief foam, providing a uniformly heated, pressure-neutral pad between the patient and the table surface. The outer shell is a non-porous urethane embedded with an anti-microbial agent that prevents the growth of micro-organisms—designed for easy cleaning. The mattresses have a 2-year warranty and expiry.

Learn more about Grounding with Return Electrodes >

Mattresses are mostly radiolucent. Only the bus bars along the long edge, the sensor, and connecting wires are radio-opaque.

U501 Patient Warming Mattress + Return Electrode 82 cm

U501 Warming Mattress + Return Electrode
82 cm (32 in)


Heated Dimensions
19.5 in x 32.3 in
(49.5 cm x 82.0 cm)

Weight
2.0 lb.
(0.9 kg)

For general surgery, orthopedics, thoracic, and more

U101 Mattress Placement
U101 Underbody
U101 Example use for Lateral (Orthopedic Trauma)
Lateral / Orthopedic Trauma
U101 Example use for Spine
Spine
U101 Example Use for Beach Chair
Beach Chair

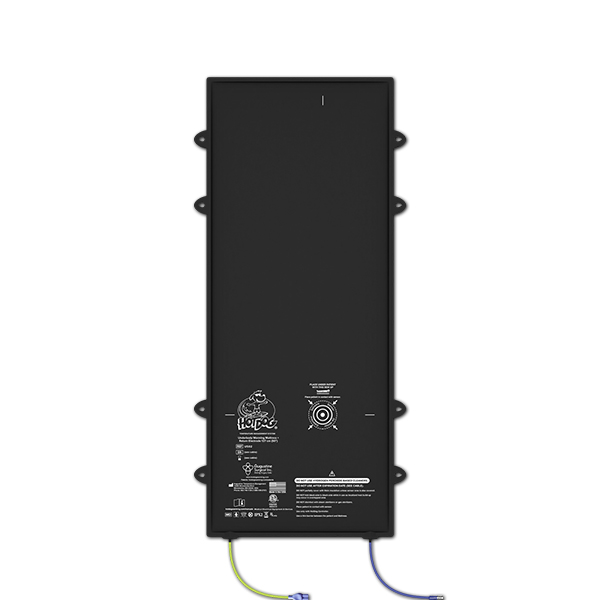

U502 Patient Warming Mattress + Return Electrode 127 cm

U502 Warming Mattress + Return Electrode
127 cm (50 in)


Heated Dimensions
19.5 in x 50.0 in
(49.5 cm x 127.0 cm)

Weight
3.3 lb.
(1.5 kg)

For cardiac surgery and plastic surgery

U102 Mattress Placement
U102 Underbody
U101 or U102 Example use for Supine
Supine
U101 or U102 Example Use for Supine (Arms Out)
Supine (Arms Out)

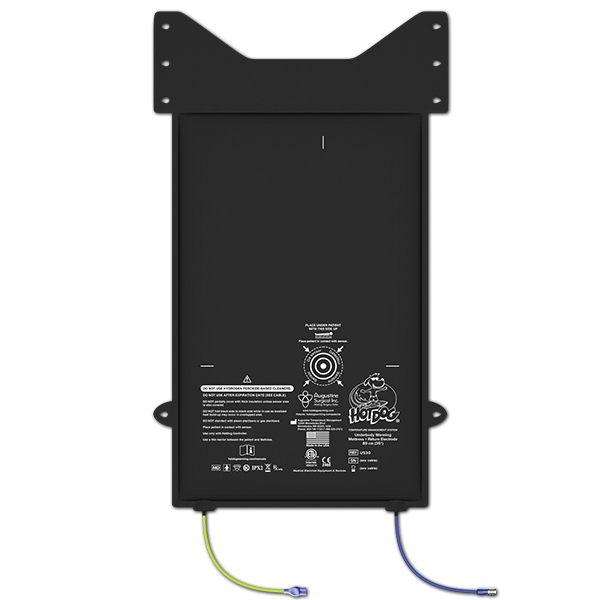

U530 Patient Warming Mattress + Return Electrode 89 cm

U530 Warming Mattress + Return Electrode
89 cm (35 in)


Heated Dimensions
23.0 in x 35.0 in
(58.4 cm x 89.0 cm)

Overall Dimensions
23.0 in x 39.0 in
(58.4 cm x 99.7 cm)

Weight
2.3 lb.
(1.0 kg)

For Trendelenburg positioning and other cases requiring tilting of the operating table

U300 Mattress Placement - Underbody
U300 – Trendelenburg Underbody
U300 Example Use for Lithotomy
